Structural Design and Modeling of a Garage Extension in Seattle
-
Sreela Biswas
- October 8, 2025
- 11:06 am
Task Assigned
Uppteam was engaged to provide complete structural design and modeling support for a garage extension project in Seattle. The project required partial demolition of the existing structure and construction of a new garage integrated with the original building, including roof and attic framing, foundation plans, and detailed structural layouts. We coordinated with architectural and MEP teams to ensure accuracy and constructability.
Project Timeline

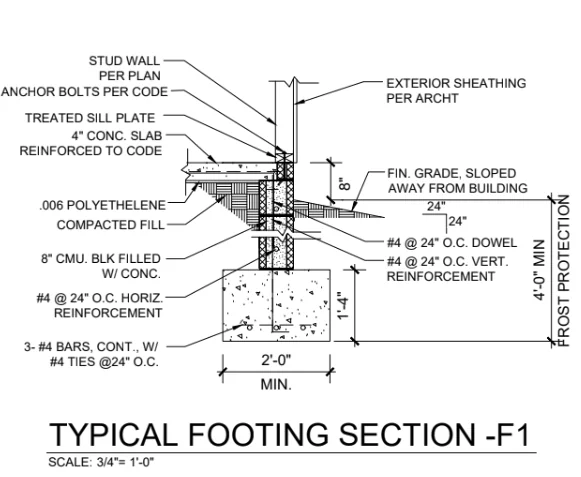

- Week 1: Site Assessment & Demolition PlanningConducted a detailed review of the existing garage structure and identified areas requiring partial demolition. Prepared foundation layouts and demolition sequencing to maintain stability and minimize impact on adjacent structures.
- Week 2: Structural Design DevelopmentDeveloped roof and attic framing plans based on design loads and architectural requirements. Structural elements were analyzed using Forte Web and Tekla Tedds to ensure code compliance and efficiency.

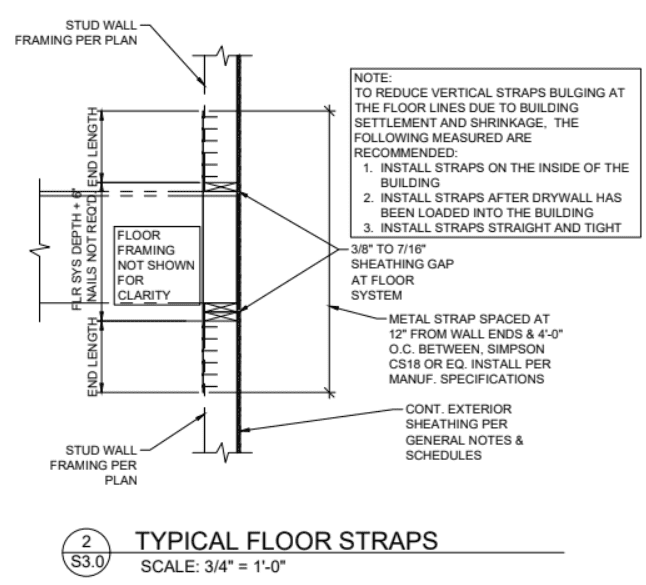

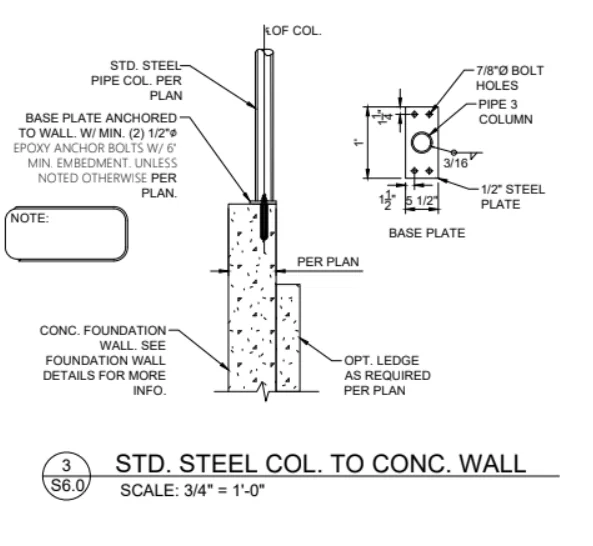

- Week 3: Detailing & CoordinationFinalized framing and foundation details and collaborated with architectural and MEP teams to resolve design conflicts. Prepared construction-ready drawings with explicit annotations and references.
Additional Notes
- The existing garage required partial demolition without compromising the stability of adjoining structures. We developed a phased demolition and reinforcement plan to maintain structural integrity during the construction process.
- Ensuring coordination among structural, architectural, and MEP elements through regular reviews and clash checks to align designs and prevent rework.
- We delivered the project on time with a well-coordinated garage extension that met the architectural intent. Our design minimized on-site conflicts and streamlined the client’s construction workflow.
